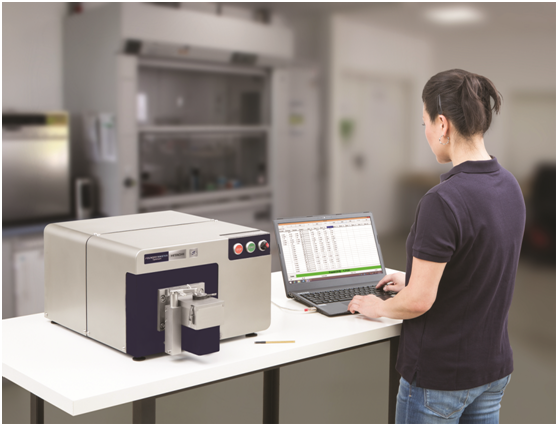

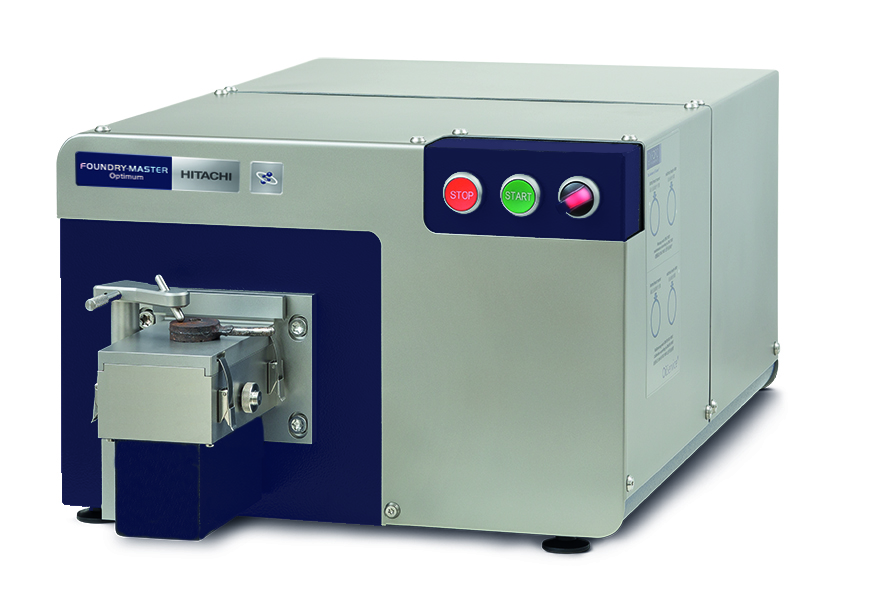

FOUNDRY-MASTER Smart

Argon Flushed Spark Stand氩气冲洗火花台

-          Three-sided open sample stand开放式样品台设计

-          Jet-Stream-Electrode with low argon consumption低氩气消耗的“喷射電极”技(jì )术

-          Universal adjustable sample clamp通用可调样品适配器

-          Exchangeable sparkstand plate for individual matrices特殊样品可更换相应火花台

-          Air cooled空气冷却系统

Computer and readout system (external PC) 计算机及读出系统（筆记本電脑）

-          Intel(R) i5-5200U 英特尔i5处理器

-          Windows 10 operating systems Windows 10操作系统旗舰版

-          Min. 2.20 GHz and 4 GB Ram 主频2.20GHz内存4.00GB

-          AMD Radeon R5 M330 显卡

-          Hard disk  硬盘容量500GB

-          CD-burner CD烧录功能

-          Multi-channel A/D converter多通道A/D转换

-          Fire-Wire, LAN Ethernet防火墙，局域网

-          Parallel interface并口

-          Serial (RS 232) Interface系列RS232接口

-          2 USB Interfaces, 2个USB接口，

-          VGA Video port视频输出功能

-          Battery life 5 hours電池续航时间 5个小时

-          External, 14.1 “TFT-LCD–Display 14.1 “液晶显示器

-          Resolution 1280 * 800 分辨率1280 * 800

-          Weight 1.94Kg 重量 1.94千克

Data Output数据输出

-          Matrix-, Inkjet-, Thermo- or Laser-printer, all standard printers can be used可接驳各种标准打印设备

-          Storage on disc (or other medium) and transfer to other programs (Excel, PDF) 数据存储在移动存储器上或以Excel、PDF形式输出

-          Network connection via serial or USB-Interface网络连接通过串口或USB接口

Software软件

-          Operating system Windows 8 Windows 8操作系统,

            spectrometer software WAS光谱仪WasLab操作软件

             Optional data maintenance programs 可选数据维护程序

Analytical Functions of Spectrometer Software操作软件分析功能

-          Type recalibration控样校正

-          Global or partial recalibration全局或局部标准化

-          Reproducibility check during recalibration and analysis校准和分析时再现性检查

-          Automatic display of required recalibration- or control samples校准或监控样品的自动显示

-          Flagging of results beyond calibration range自动标识超出曲線范围的结果

-          Input of user-defined sample identity codes用户自定义样品码输入

-          Automatic or user-controlled printout of analytical results自动或用户自定义分析结果的打印、存储及输出

-          Free editable grade database自定义牌号数据库

-          Grade-search and identification牌号搜索和牌号鉴定功能

-          Input of user-defined formulas自定义公式输入

-          Output of analytical results in light quantity intensities, ratios, recalibrated intensity ratios, corrected recalibrated intensity ratios 分析结果可显示相对强度、标准化强度和校正强度等多种形式

-          Output of analytical results in concentration, mass percentage, mass percentage related to spectral lines 分析结果可用浓度、通道浓度表示

-          1 or 2 point recalibration单点标或两点标准化

-          Additive and multiplicative interelement correction干扰校正

-          Matrix correction基體校正

-          Automatic spectral line switching 谱線自动切换

-          Calculation of average, standard deviation and variation coefficient for any number of burns任意激发次数测量结果的平均值、标准偏差及相对标准偏差等计算

-          Automatic hardware diagnostics硬件故障自动诊断

-          Graphical display of spectra 光谱图形显示

-          Storage of spectral information for future evaluation谱图信息存储

TECHNICAL DATA 技(jì )术数据

Dimensions 尺寸:

-          高：  280 mm

-          長：  665 mm

-          宽：  415 mm

-          重量：35 kg

電源要求：

-          220 V /50 Hz

-          运行功率700 W

-          待机功率50 W

-         16 A慢熔保险丝

氩气要求：

-          99.999%高纯氩气, purity 5.0

-          进气压力3bar,Pressure 3 bar

-          铜管Copper argon duct , unpolluted (e.g. solder)
